Sealed Centrifugal Blower
Elica Filterless Chimney Repair and Service
Searching for Elica filterless chimney repair near me? If your filterless cooker hood has low suction, makes unusual motor noise, or the touch and motion sensors do not respond, the fault needs to be checked before deciding whether deep cleaning or a component replacement is needed.
How the technology works: Elica filterless chimneys do not use traditional stainless steel wire or baffle filters. Instead, they feature a sealed metal motor housing with a high-speed centrifugal impeller wheel. As cooking smoke and tadka mist rise, high-velocity centrifugal spinning flings heavy oil droplets outwards into internal collection channels that drain into an oil cup. This eliminates weekly filter washing, but places greater oily load directly on the internal fan wheel and motor bearings over time.
Common Problems for Filterless Chimneys:
- Low suction or poor smoke removal: Sticky oil film accumulates on high-speed impeller blades over 6–12 months, slowing rotation speed and reducing air displacement.
- Unusual humming or vibrating noise: Heavy grease sticking unevenly on one side of the blower fan causes rotational imbalance and bearing stress.
- Motor or speed-control problems: Motor fails to start or remains stuck on speed 1 due to a weak run capacitor or damaged PCB speed relay.
- Touch and gesture control faults: Greasy vapour coating the front glass infrared sensors or moisture behind the touch display causing ghost touches.
- Grease collection issues: Internal drainage groove choked with hardened cooking fat, causing oil to seep around the chimney rim instead of draining into the oil cup.
Applicable Parts & Pricing Considerations:
Motor run capacitor (₹150–₹450), Touch/Gesture sensor PCB module (₹1,500–₹3,200), replacement blower fan wheel (₹600–₹1,200), full copper motor assembly (₹1,800–₹4,500+). Inspection charge: ₹199–₹499. Deep degreasing: ₹599–₹1,199.
Heat Cleaning System
Elica Auto-Clean Chimney Service Center in India
Looking for Elica auto-clean chimney service near me? If the auto-clean cycle does not start, the heating pad fails to warm up, or the oil collector cup remains dry while grease drips into cookware, our guide explains common cleaning-system faults and repair costs.
How the technology works: Elica heat auto-clean technology incorporates an electric thermal heating pad wrapped securely around the metal blower housing. When activated via the touch button or gesture panel, the heating pad warms up to approximately 80°C to 85°C for 6 to 9 minutes. This liquefies stubborn grease deposits, which flow down dedicated runoff spouts into an external plastic or stainless steel oil collector cup.
Common Problems for Auto-Clean Chimneys:
- Auto-clean function not working: The auto-clean button lights up, but the housing stays cold. This indicates an open-circuit burned heating pad or blown heating relay on the main PCB.
- Cleaning cycle not starting: PCB controller fails to initiate the timed cycle due to a safety thermostat trip or power supply board fault.
- Oil collector not filling: The heating element functions properly, but the internal drainage channel is blocked by carbonized cooking fat, preventing grease from reaching the cup.
- Oil dripping from canopy corners: Misaligned oil collector tray or overflow from deferred emptying of the tray.
- Reduced suction despite auto-clean usage: Auto-clean melts grease from the housing wall, but does not clean exhaust duct pipes, external wall cowls, or motor windings.
Applicable Parts & Pricing Considerations:
Auto-clean heating pad/strip (₹900–₹1,800), replacement oil collector tray (₹300–₹650), PCB heating relay repair (₹1,000–₹1,300). Inspection: ₹199–₹499. Comprehensive internal cleaning: ₹699–₹1,199.
Heavy Indian Cooking Specialist

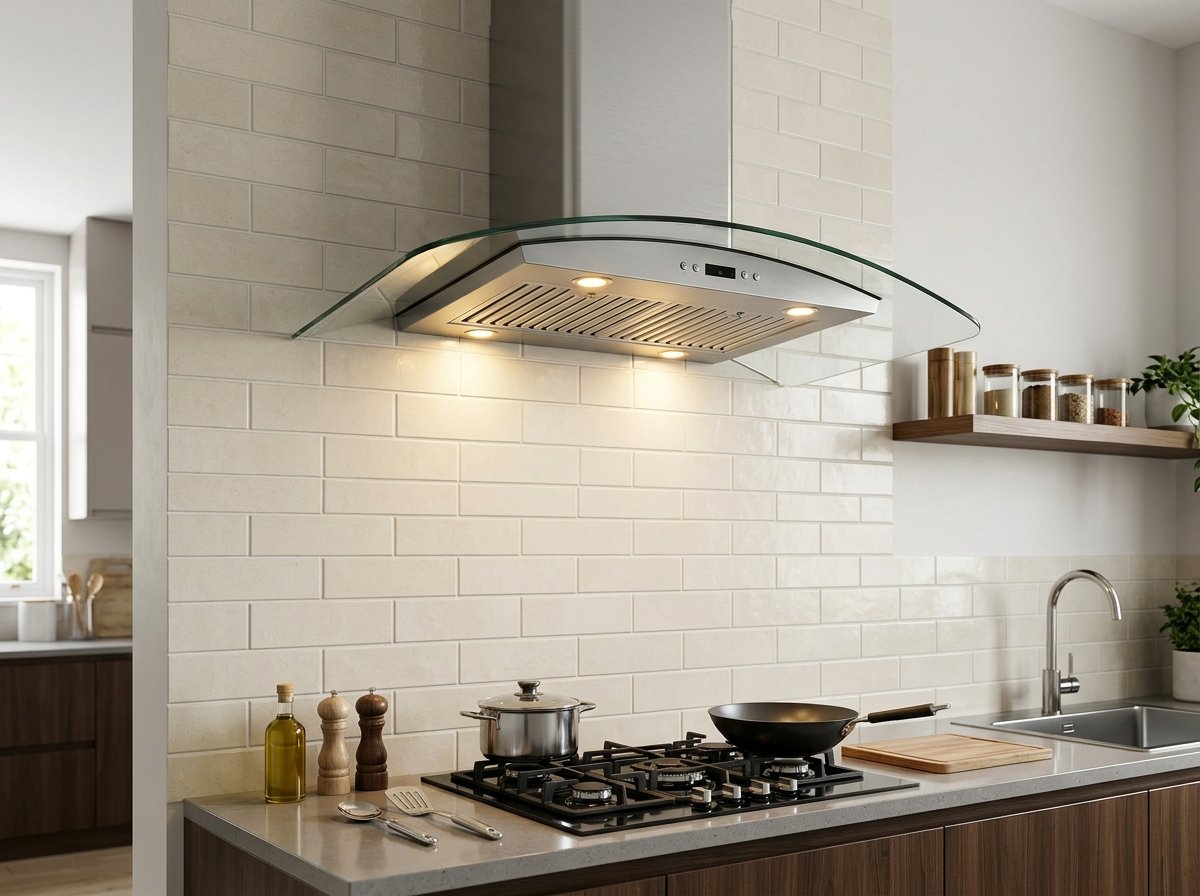

Elica Baffle Filter Chimney Repair and Service
Searching for Elica baffle filter chimney repair near me? If your curved glass hood has weak suction, makes rattling noises, or leaks oil droplets onto the cooking slab, regular filter maintenance and electrical inspections help restore quiet, high-suction ventilation.
How the technology works: Baffle filter chimneys utilize patented curved stainless steel louvers arranged in alternating layers. When heavy cooking fumes and masala-laden smoke hit the curved baffles, sharp directional changes force heavier oil particles to drop out and slide into collection gutters while lighter smoke passes cleanly through to the exhaust duct. This design is exceptionally durable for deep frying and tadka.
Common Problems for Baffle Filter Chimneys:
- Reduced suction due to grease buildup: When baffle filters are not washed for 3–4 weeks, oil bridges across louvers, reducing airflow by up to 60% and overheating the motor.
- Grease dripping onto cooktop: Overloaded filter channels overflow when full, or filter latch springs loosen and cause gaps along the intake frame.
- Excessive vibrating noise: Loose glass canopy fasteners, unlubricated motor bearings, or warped baffle plates rattling during high-speed suction.
- Lighting failures: Halogen or low-voltage LED spotlight bulbs burning out due to heat exposure or faulty 12V transformers.
Applicable Parts & Pricing Considerations:
Replacement stainless steel baffle filter (₹800–₹1,500 per piece), LED spotlight unit (₹150–₹350), filter latch clips (₹150–₹300), motor run capacitor (₹150–₹450), full motor assembly (₹1,800–₹4,200). Deep chemical degreasing: ₹599–₹999.
Energy-Efficient Brushless Motor
Elica BLDC Inverter Chimney Repair and Diagnostics
Need Elica BLDC chimney repair in India? If your brushless inverter chimney has speed regulation issues, displays error codes, or abruptly stops during operation, our technical breakdown explains inverter motor diagnostics and circuit repair requirements.
How the technology works: BLDC (Brushless Direct Current) inverter chimneys replace traditional AC induction motors with electronically commutated motors. They use permanent magnets and a specialized inverter driver card to control RPM across 9 to 12 precise speed levels. BLDC technology cuts electricity consumption by up to 50%, operates at lower decibel levels, and delivers high peak suction (up to 1450 m³/hr).
Common Problems for BLDC Inverter Chimneys:
- Speed-control and stepping problems: Motor surges between speeds or fails to accelerate beyond low RPM due to inverter driver communication faults.
- Motor operation faults & sudden shutdown: Motor stops after a few seconds because the inverter PCB detects voltage fluctuations or excessive thermal resistance.
- Control-panel and error code display issues: Digital display flashes error codes (such as E1, E2, or motor sensor errors) requiring electronic logic reset.
- Unusual electronic whine or low suction: Stator hall sensor misalignment or backdraft damper flap stuck shut inside the exhaust collar.
Applicable Parts & Pricing Considerations:
BLDC inverter driver PCB (₹2,200–₹3,800), BLDC brushless motor assembly (₹2,800–₹5,500+), digital touch interface board (₹1,400–₹2,500). Standard AC capacitors do not apply to BLDC motors. Inspection charge: ₹249–₹499.
Central Open Kitchen Architecture

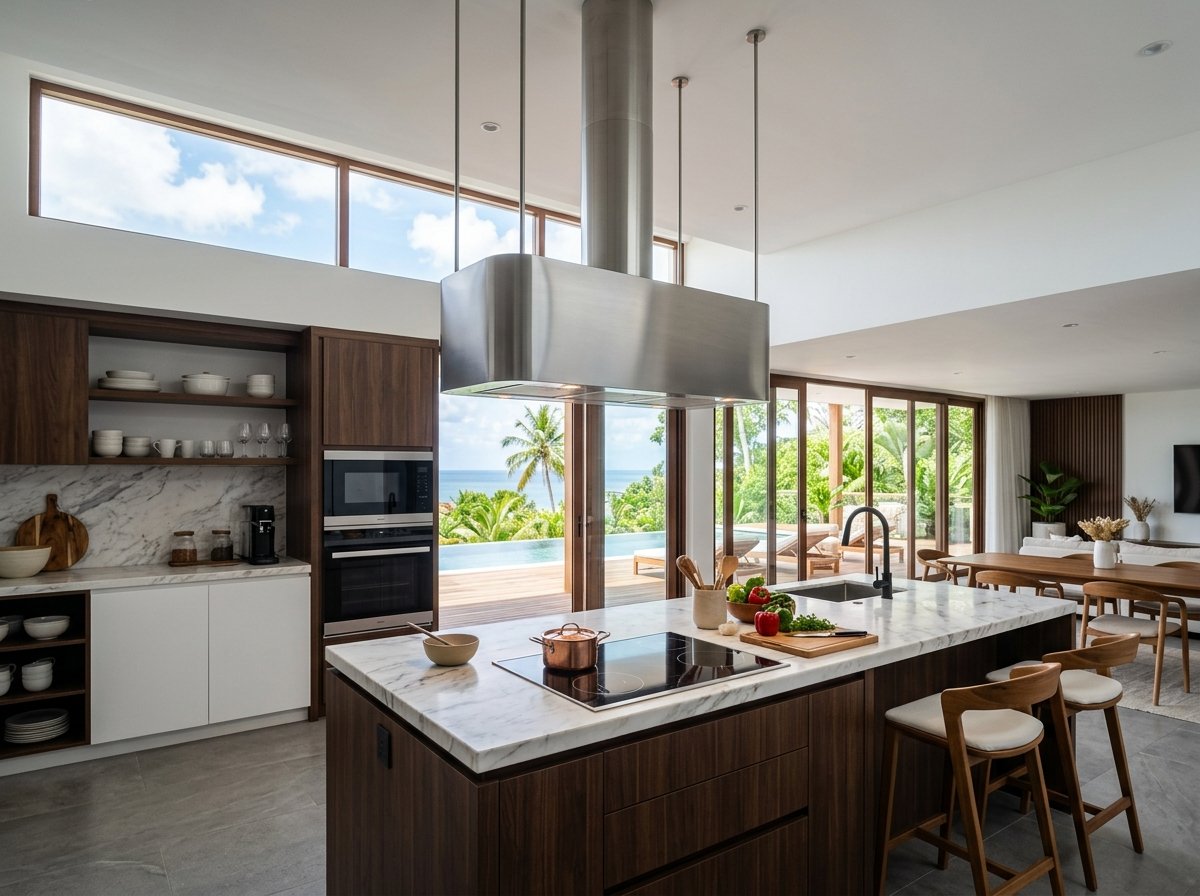

Elica Island and Ceiling-Mounted Chimney Repair
Searching for Elica island chimney repair near me? Central island hoods hang freely from ceiling slabs without wall support. Learn about structural suspension checks, high-capacity motor servicing, multi-angle lighting, and ducting repairs.
How the technology works: Island and ceiling hoods feature symmetrical 360-degree stainless steel or glass canopies anchored directly into the ceiling concrete via threaded rods or steel cables. Because open kitchen islands lack walls to guide smoke upward, these chimneys use high-power 1200–1450 m³/hr blowers, multi-directional LED lighting, and long horizontal duct runs to capture smoke before cross-drafts disperse it.
Common Problems for Island & Ceiling Hoods:
- Excessive vibration and canopy wobble: Loosened ceiling anchors, uneven suspension cable tension, or grease-weighted blower wheels.
- Airflow or duct-related problems: Long horizontal duct runs with multiple bends create backpressure, reducing smoke capture efficiency.
- Multi-sided lighting faults: Island hoods feature 4 to 6 LED spotlights; burned driver transformers cause complete light bank failure.
- Motor or speed selector faults: Dual-control panels (accessible from both sides of the island) experiencing switch synchronization failure.
Applicable Parts & Pricing Considerations:
High-capacity blower motor (₹2,500–₹5,000+), multi-spotlight LED driver (₹450–₹850), ceiling anchor and cable tension adjustment (₹400–₹700 labour), island deep degreasing service (₹799–₹1,499).
Compact Modular Cabinet Fit
Elica Telescopic and Straight-Line Hood Service and Repair
Looking for Elica straight-line chimney service or telescopic hood repair in India? Compact under-cabinet hoods require careful switch, sliding rail, and carbon filter maintenance to keep modular kitchen cabinetry clean and smoke-free.
How the technology works: Straight-line and telescopic cooker hoods are engineered to fit flush beneath overhead wall cabinets in compact modular kitchens. Telescopic hoods incorporate a pull-out slide visor that automatically turns on the blower motor and illumination when extended outward, and switches off when pushed back flush. They can be installed with outdoor venting ducts or in ductless recirculating mode with activated charcoal filters.
Common Problems for Telescopic & Straight-Line Hoods:
- Extension or retraction problems: Pull-out sliding visor binds or sticks due to baked-on cooking oil in the guide runners.
- Motor not starting when pulled out: Internal slide microswitch contacts worn out or dislodged from the actuator arm.
- Airflow and odor recirculation problems: In ductless mode, saturated activated carbon filters stop absorbing cooking odors and choke airflow.
- Push-button mechanical failure: On straight-line models, mechanical push-button switchbank latches break internally from repeated pressing.
Applicable Parts & Pricing Considerations:
Replacement activated carbon filter pair (₹650–₹1,200), push-button switch assembly (₹450–₹850), telescopic slide microswitch (₹250–₹450), compact blower motor (₹1,600–₹3,200). Inspection: ₹199–₹399.
